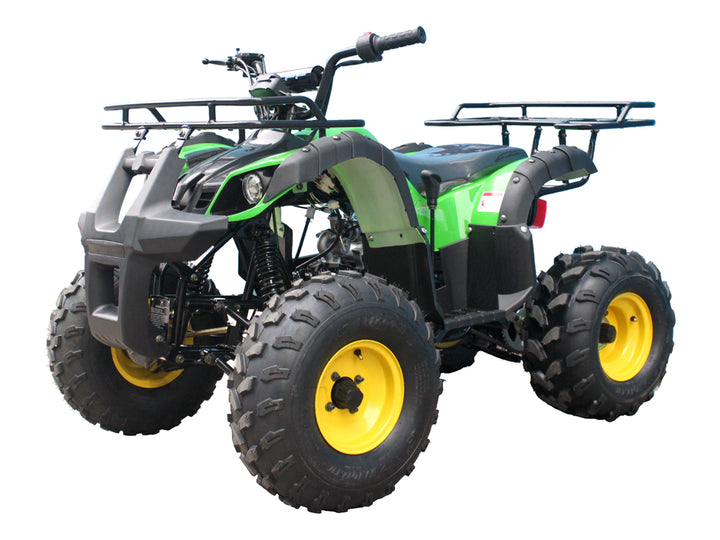

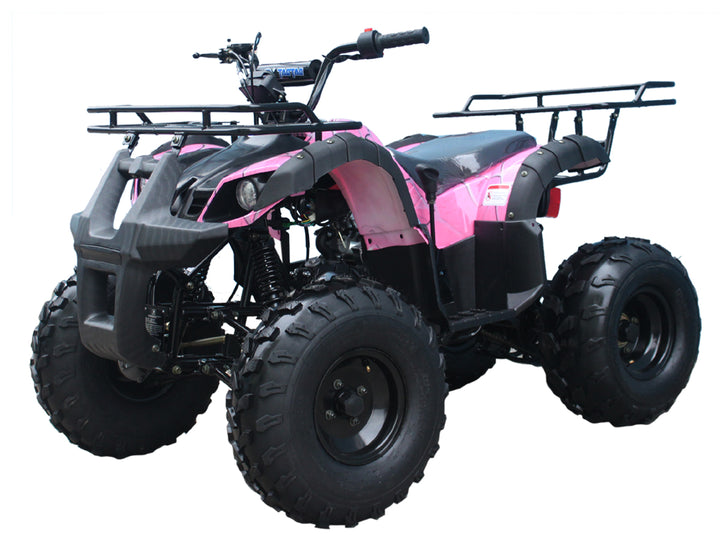

Tao Motor 110cc T-Force Mid-Size ATV
SKU: TTTFORCE110
Availability :
In Stock
Pre order
Out of stock

Specification
Dimension
Enginedrive train
Atv displacement ml 110 |
Battery 12V/5Ah |
Carb (ca only) 2nd Not for California |
Carb ca only Yes |
Climbing ability 13° |
Cooling Air-Cooled |
Driving wheel Rear Wheels Drive |
Engine oil 10w/40 Semi Synthetic 4 Stroke |
Engine type Four Stroke, Single Cylinder |
Epa Yes |
Epa 2nd Yes |
Final drive Chain Drive |
Front brake Drum |
Front suspension Double A-Arm w/ Shock |
Front tire 19x7-8 |
Gas type Premium Only |
Hot item Hot Item |
Ignition CDI |
Kidsyouth adult atv Kids / Youth ATV |
Rear brake Disc |
Rear suspension Single Arm w/ Shock |
Starting system Electric |
Tire size Front 19" Rear 18" |
Transmission Automatic w/ Reverse |
Weight 167.0000 |
Front Hand Brake | Drum |
---|---|
Rear Foot Brake | Hydraulic Disc |
Tire Front | 19x7-8 |
Tire Rear | 18x9.5-8 |
Suspension Front(inch) | 11.6 |
Suspension Rear(inch) | 11 |
Speed Limiter(Yes/No) | Yes |
Engine kill switch(Yes/No) | Yes |
Dimension
Battery | 12V/4Ah |
---|---|
G.W.(lbs) | 269 |
N.W.(lbs) | 240 |
Max Loading(lbs) | 132 |
Carton Size(inch) | 51x30x24 |
Seat Height(inch) | 29 |
Ground Clearance(inch) | 6 |
Enginedrive train
Engine Type | 125CC,Air cooled, 4-stroke, 1-cylinder,automatic with reverse |
---|---|
Start Type | Electric start |
Transmission | Chain Drive |
Engine Gear | F-N-R |
Shift Gear | Hand |
Max Torque | 6.5N.m/5000-5500r/min |
Wheelbase(inch) | 37 |
Ignition | CDI |
Fuel Capacity(L) | 3.5 |
Description
This ATV is equip with Remote Engine Shut Off Control for Child Safety and Speed Limiter for Easy to Learn.
Get the PRO Exclusive Fully Assembled w/ Starter Test package
Product Details Overview
![]() |
Hummer utility style ATV Yamaha Grizzly clone
|
![]() |
ATV Speed Limit Control
|
![]() |
Bigger Body Frame for Quad
|
![]() |
Fully Automatic Transmission w/ Reverse for Quad
|
![]() |
Youth and Adult ATV
|
![]() |

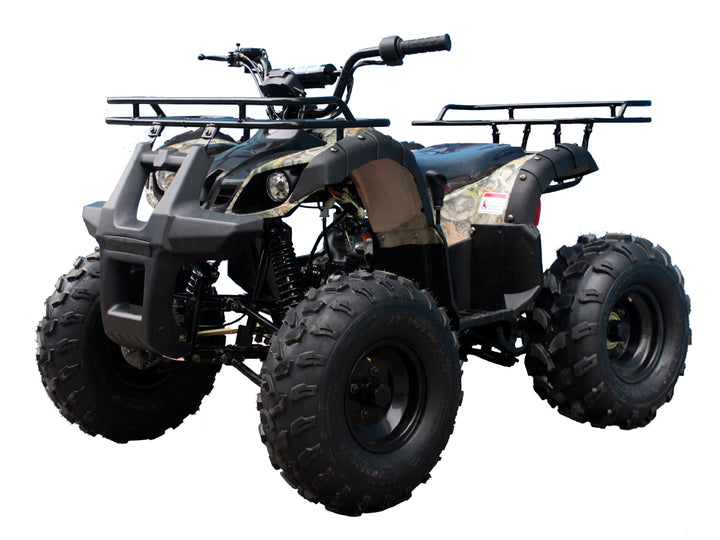

ATV Camouflage Color Available
|
ATV Size Comparison
KIDS

50CC-110CC
ATV 6 inches Rims with
14.5 inches Tires
14.5 inches Tires
- Wheel Base: 31.5 inches
- Height: 31.5 inches
- Seat Height: 21.7 inches
- Recommend Height for: 3 - 4 Ft
KIDS ~ YOUTHS

110CC-125CC
ATV 7 inches Rims with
16 inches Tires
16 inches Tires
- Wheel Base: 33.5 to 34.5 inches
- Height: 36.4 inches
- Seat Height: 24.4 inches
- Recommend Height for: 3.5 - 5 Ft
YOUTHS ~ ADULTS

125CC-200CC
ATV 8 inches Rims with
19/18 inches Tires
19/18 inches Tires
- Wheel Base: 36 to 45 inches
- Height: 37.8 inches
- Seat Height: 26.8 inches
- Recommend Height for: 4 - 5.3 Ft
FULL SIZE ADULT

200CC & UP
ATV 10 inches Rims with
23/22 inches Tires
23/22 inches Tires
- Wheel Base: 44 to 47 inches
- Height: 39.4 inches
- Seat Height: 33.5 inches
- Recommend Height for: 4.5 - 6 Ft
