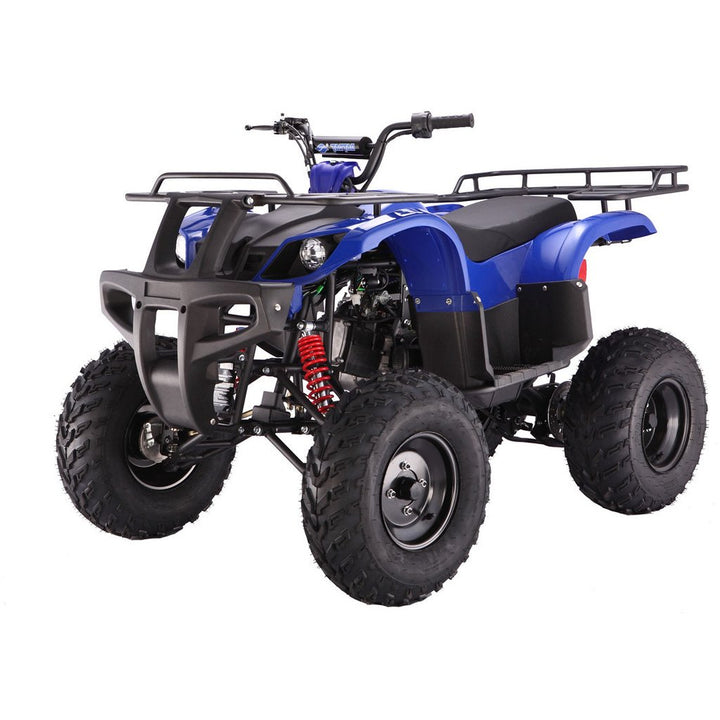

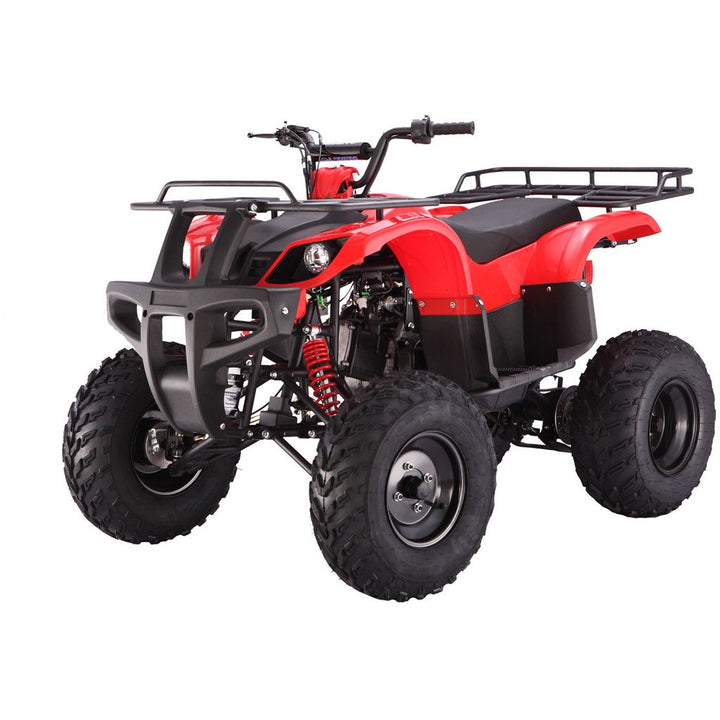

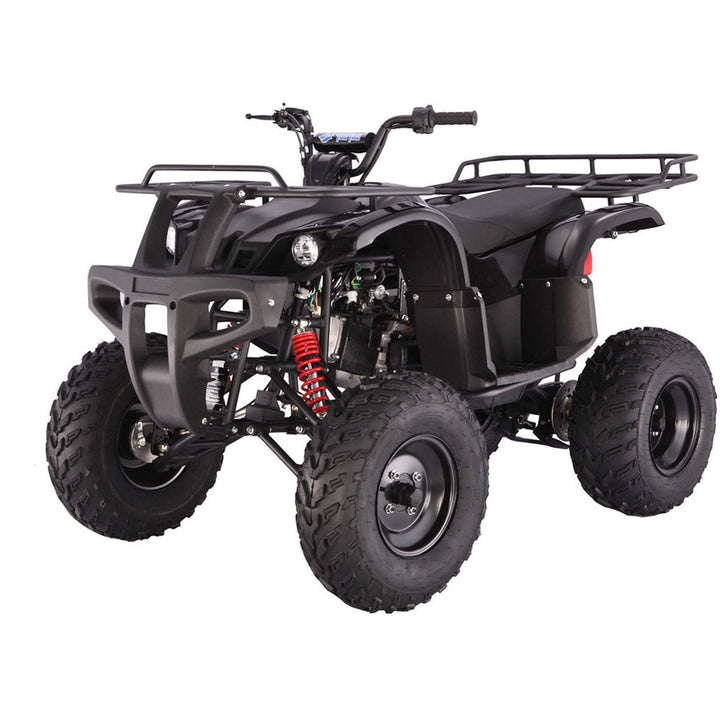

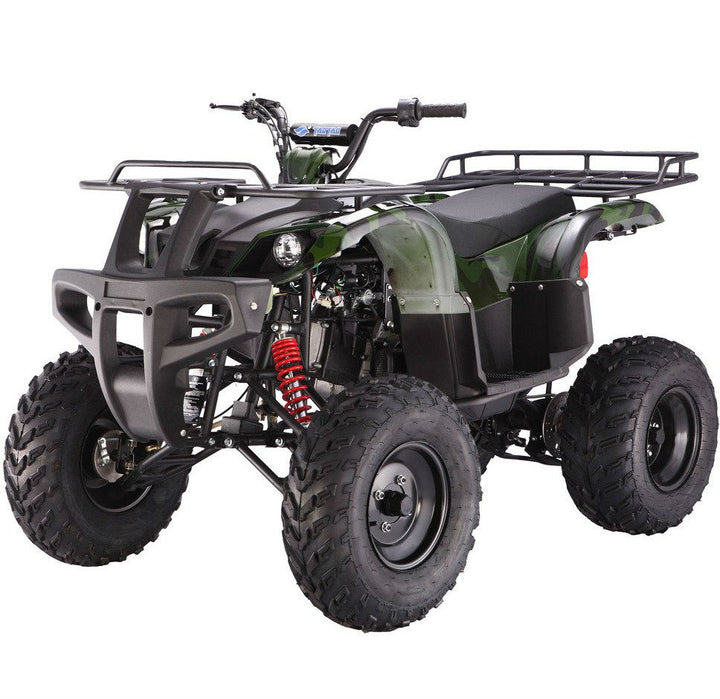

Tao Motor BULL 150 FULL-SIZE ATV

Atv displacement ml 150 |
Battery 12V/9Ah |
Battery 2nd 12V/9Ah |
Carb ca only No |
Cooling Air-Cooled |
Cooling 2nd Air-Cooled |
Displacement ml 150 |
Engine oil 10w/40 Semi Synthetic 4 Stroke |
Engine type Four Stroke, Single Cylinder |
Epa No |
Epa 2nd Yes |
Final drive 2nd Chain Drive |
Final drive Chain Drive |
Front suspension 2nd 15.7in |
Front brake Drum |
Front suspension Double A-Arm w/ Shock |
Front tire 23x7-10 |
Fuel capacity gal 4.2 |
Gross weight lbs 363.67 |
Ground clearance inch 5.32 |
Height inch 43.3 |
Ignition CDI |
Ignition 2nd CDI |
Length inch 69.3 |
Max stock horsepower Max Torque: 8.5N.m/5000-5500r/min |
Net weight lbs 308.65 |
Rear suspension 2nd 13.4in |
Rear brake Disc |
Rear brakes Hydraulic Disc |
Rear suspension Single Arm w/ Shock |
Rear tire 22x10-10 |
Rear tires 22x10-10 |
Seat height inch 31.89 |
Starting system Electric |
Transmission Manual (3 Speed) |
Transmission 2nd Chain Drive |
Weight 319.9500 |
Weight capacity lbs 198 |
Wheelbase inch 43.9 |
Width inch 42.1 |
Off-Road Legal:
US EPA (Environmental Protection Agency) APPROVED
Not For Sale In California (This unit is not California Air Resources Board Compliant & can not be registered for use)
Engine: Engine Type: 150CC,Air cooled, 4-stroke, 1-cylinder, automatic Start Type: Electric start Transmission: Chain Drive Engine Gear: D-N-R Shift Gear: Hand Max Torque: 8.5N.m/5000-5500r/min Wheelbase(inch): 43.9 Ignition: CDI Fuel Capacity(L): 4.2 Chassis: Front Hand Brake: Drum Rear Foot Brake: Hydraulic Disc Tire Front: 23x7-10 Tire Rear: 22x10-10 Suspension Front(inch): 15.7 Suspension Rear(inch): 13.4 remote control(Yes/No): No Speed Limiter(Yes/No): Yes Engine kill switch(Yes/No): Yes Dimension: Battery: 12V/9Ah G.W.(lbs): 363.76 N.W.(lbs): 308.65 Max Loading(lbs): 198 Overall Size(inch): 69.3x42.1x43.3 Carton Size(inch): 55.9x33.0x34.3 Seat Height(inch): 31.89 Ground Clearance(inch): 5.32
Tao Motor Cares: Read Owner’s Manual and all on-product warnings. ATVs can be hazardous to operate. For your safety, Always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs or alcohol. Never ride on public roads or pavement. Be extra careful on difficult terrain. All children under the age of 16 riding ATVs should always have adult supervision at all times. Tao Motor also recommends that all ATV riders take a training course. For more information contact us or any local dealer or call (888) 908-3816 Tao Motor Inc.
