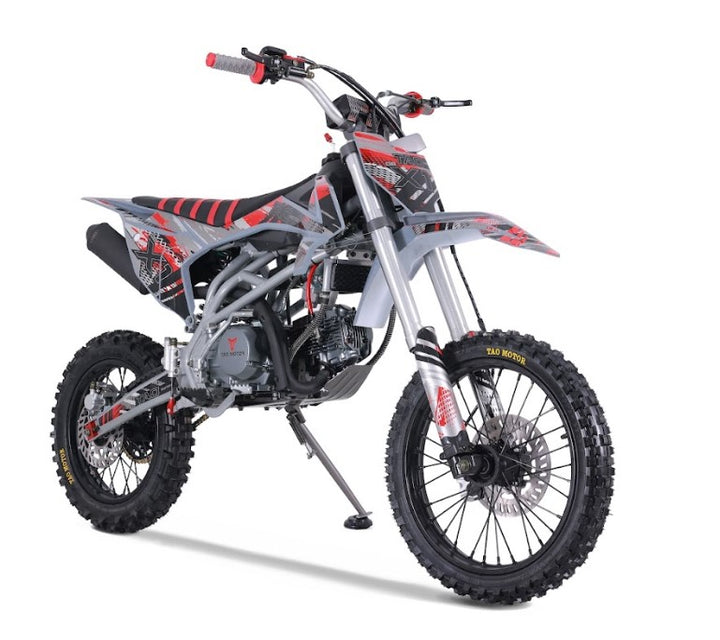

Tao Motor 140cc DBX1 Adult Dirt Bike "The New 2022 Limited Edition"

SKU: TT-DB-X1
$1,049.95
Availability : In Stock Pre order Out of stock
Add to Wishlist
Ask a Question
Categories: 140cc Dirt Bikes, All Products, Dirt Bikes, Dirt Bikes Tab Listing, Products, Sale
Tags: 140cc Dirt Bikes, All Products, Dirt Bikes, Dirt Bikes Tab Listing, Sale

Specification
Epa

Yes
Hot item

Hot Item
Manufacture

TAO TAO
Starting system

Kick Start
Transmission

4 Speed Transmission
Weight

200.0000

Info

DBX1

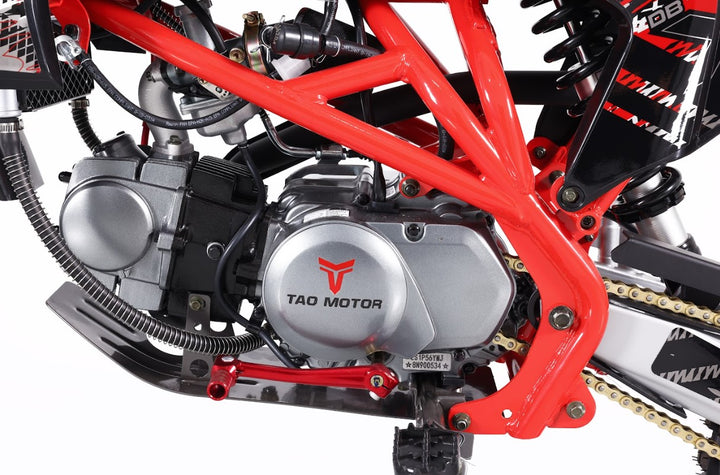

Engine:
Engine Type: 140cc,Air cooled, 4-stroke, single-cylinder
Start Type: Kick Start
Transmission: Chain Drive
Engine Gear: 4-speed   (1-N-2-3-4)
Wheelbase(inch): 49.00 Inches (1245 mm)
Ignition: CDI
Fuel Capacity:  1.5 Gal (5.5 L)

Chassis:
Frontc Brake: Hydraulic Disc      --- Hand Braker
Rear Brake:  Hydraulic Disc      --- Foot Braker
Tire Front: 70/100 - 17
Tire Rear: 90/100 - 14
Rim Front: 1.6 x 17 (steel)
Rim Rear: 1.8 x 14 (steel)
Max Speed: 52 MPH (85 KM/H)

Dimension:
G.W.(lbs): 208 LBS (94.5KG)
N.W.(lbs): 162 LBS (73.5KG)
Overall Size(inch): 72 x 30 x 46 Inches (1820 x 760 x 1160 mm)
Carton Size(inch): 62 x 17 x 32 Inches (1580 x 430 x 810 mm)
Seat Height: 35 Inches (855 mm)
Ground Clearance: 14.57 Inches (370 mm)
Description

Product Details Overview

Pit Bike Semi Automatic

Manual Standard Transmission ((Shift Pattern, One down Three Up)
Standard Manual 4 speed transmission with One Down Three Up Shift Pattern, Maximize your fun in your race now



Pit Bike Hydraulic Fork

Pit Bike w/ Hydraulic Front Forks
Conventional Hydraulic Forks give you more travel and better balance for your ride. Maximize your riding skill on the rock and dirt.



Pit Bike 19mm Keihin Carburetor

22mm Keihin High Performance Carburetor
High Performance carburetor. It is designed with Japanese Technologies improves top performance on your bike.



Pit Bike 255mm Rear Shock

275mm Coilover Rear Shock
275mm Coilover Shock with Adjustable with compression damping and coil spring preload, High-speed compression and rebound reaction are available. Nitrogen charged.



Pit Bike Mild Steel Swing arm

Black Mild Steel Strong Swing Arm
It will get more rear wheel travel and ride height for your new mini. This Swingarm is a replica of the Super Pro Swingarm that moves the shock to the vertical position.



Pit Bike Hydraulic Brake System

Pit Bike Hydraulic Brake System
8-Inch Vented Wave Rotor and Single-Piston Caliper, 7.5-Inch Vented Rotor and Single-Piston Caliper, Hydraulic Actuation, Hydraulic Actuation provide the best handling on the brake ensure the max power of your braking system.



Pit Bike Upgraded Muffler

Performance Exhaust System
Performance Exhaust makes your mini have that deep throaty sound like the big CRF's and gives your mini better throttle response and more power.



Pit Bike Aluminum-Rim

Pit Bike Aluminum-Rim with "Semi-Pro" Hub
70/100 - 17 Front Tire on Black Anodized, Aluminum-Rim with "Semi-Pro" Hub; 90/100 - 14 Rear Tire on Black Anodized, Aluminum-Rim with "Semi-Pro" Hub, Light weight material with strong support for running.

Dirt Size Comparison

Kids Dirt Bike

></div> <div class=49cc - 110cc
  • 53 x 25 x 34 Inches
  • 10inch Front & Rear Wheel
  • Seat Height: 26inch
  • Best Fit 3-4.5 Ft

Kids - Youth Dirt Bike

></div> <div class=110cc - 125cc
  • 63 x 30 x 43 Inches
  • 14inch Front & 12inch Rear Wheel
  • Seat Height: 27.5inch
  • Best Fit 3.5-5 Ft

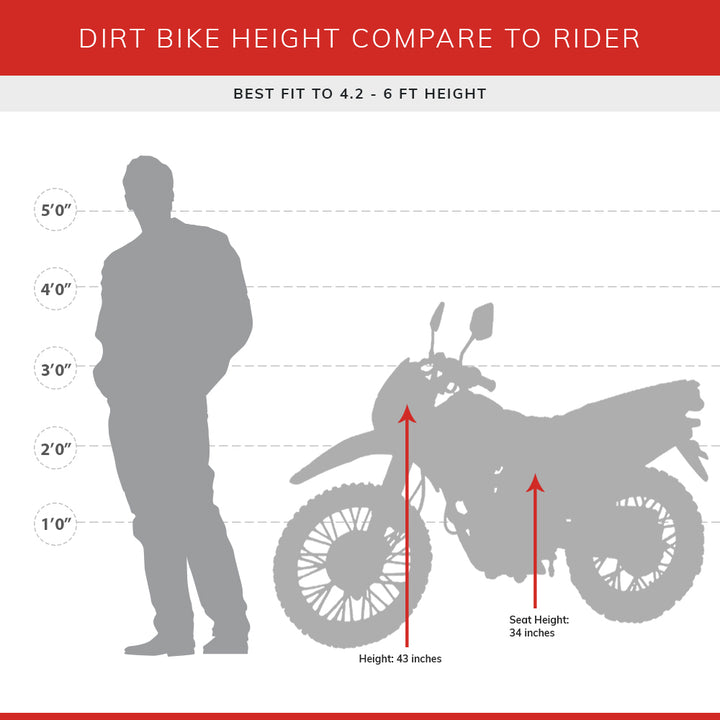

Youth - Adult Dirt Bike

></div> <div class=125cc and UP
  • 70 x 30 x 43 Inches
  • 17inch Front & 14inch Rear Wheel
  • Seat Height: 34 inch
  • Best Fit 4.2-6 Ft
