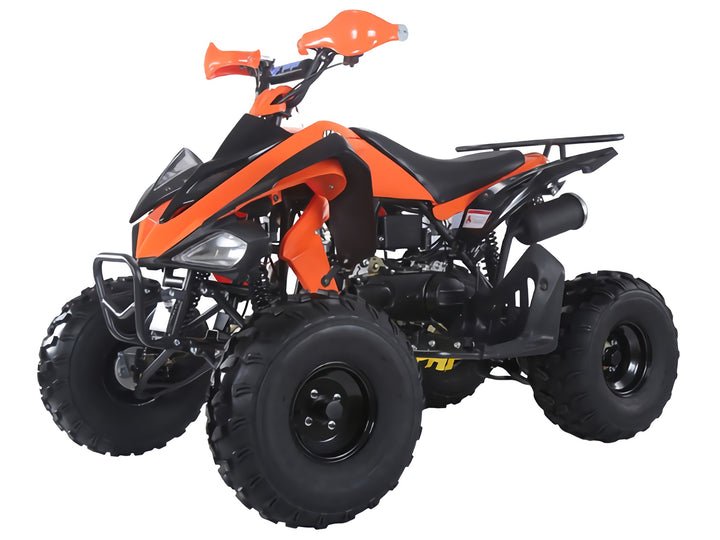

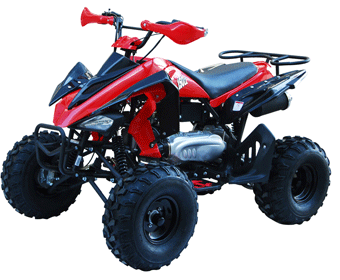

Tao Motor 150G Yamaha Raptor Clone 150cc ATV (Hi-Power Racing Quad, Large 21-20" Tires with 8" Wheels, Fully Automatic w- Reverse)

SKU: ATVTT150G-150
No reviews
$1,989.00 $1,038.95 SAVE 48%
Availability : In Stock Pre order Out of stock
Add to Wishlist
Ask a Question
Categories: 150cc ATVs, ATVs/UTVs, ATVs/UTVs Tab Listing, Products, Tab Listing
Tags: 150cc ATVs, ATVs/UTVs, ATVs/UTVs Tab Listing, Tab Listing

Specification
Atv displacement ml

150
Battery

12V/9Ah
Carb (ca only) 2nd

Red Sticker Certification
Carb ca only

Yes
Climbing ability

30°
Cooling

Air-Cooled
Driving wheel

Rear Wheels Drive
Engine oil

10w/40 Semi Synthetic 4 Stroke
Engine type

Four Stroke, Single Cylinder
Epa

Yes
Epa 2nd

Yes
Final drive

Chain Drive
Front brake

Drum
Front suspension

Double A-Arm w/ Shock
Front tire

21x7-8
Gas type

Premium Only
Hot item

Hot Item
Ignition

CDI
Kidsyouth adult atv

Youth / Adult ATV
Rear brake

Disc
Rear suspension

Single Arm w/ Shock
Rear tire

20x9.5-8
Starting system

Electric / Kick Start
Tire size

Front 21" Rear 20"
Transmission

Automatic w/ Reverse
Weight

300.0000

Front Hand Brake Drum
Rear Foot Brake Hydraulic Disc
Tire Front 21x7-8
Tire Rear 20x9.5-8
Suspension Front(inch) 15.9
Suspension Rear(inch) 18.11
remote control(Yes/No) No
Speed Limiter(Yes/No) Yes
Engine kill switch(Yes/No) Yes

Dimension

Battery 12V/9AH
G.W.(lbs) 342
N.W.(lbs) 309
Max Loading(lbs) 198
Overall Size(inch) 64.97X44.10X45.7
Carton Size(inch) 58.3X32.7X32.9
Seat Height(inch) 29.5
Ground Clearance(inch) 4.7

Enginedrive train

Engine Type 150CC, Air cooled, 4-stroke, 1-cylinder, automatic
Start Type Electric start
Transmission Chain Drive
Engine Gear F-N-R
Shift Gear Hand
Max Torque 8.5N.m/5000-5500r/min
Wheelbase(inch) 45.3
Ignition CDI
Fuel Capacity(L) 3.5

Other

EPA YES
CARB YES
Description

Get the PRO Exclusive Fully Assembled w/ Starter Test package

Product Details Overview

ATV Yamaha Body Style

ATV Replica Yamaha Raptor Clone Body Style for Quad
Yamaha ATV Replica body style, extra grip guard included



ATV Double A-Arm

Double A-Arm for Quad
ATV with Double A-arm provides maximum performance with the hight quality spring suspension



ATV Duty Wheels and Dirt Tires

Duty Wheels and Dirt Tires for Quad
Stagger set up F19R18 inch, ATV with heavy duty 10 inch wheels and dirt tires



ATV Full Automatic

Fully Automatic Transmission w/ Reverse for Quad
ATV Fully automatic transmission gives the pleasure of twist throttle and go for any one who just want to ride out and have fun.  Reverse gear is standard

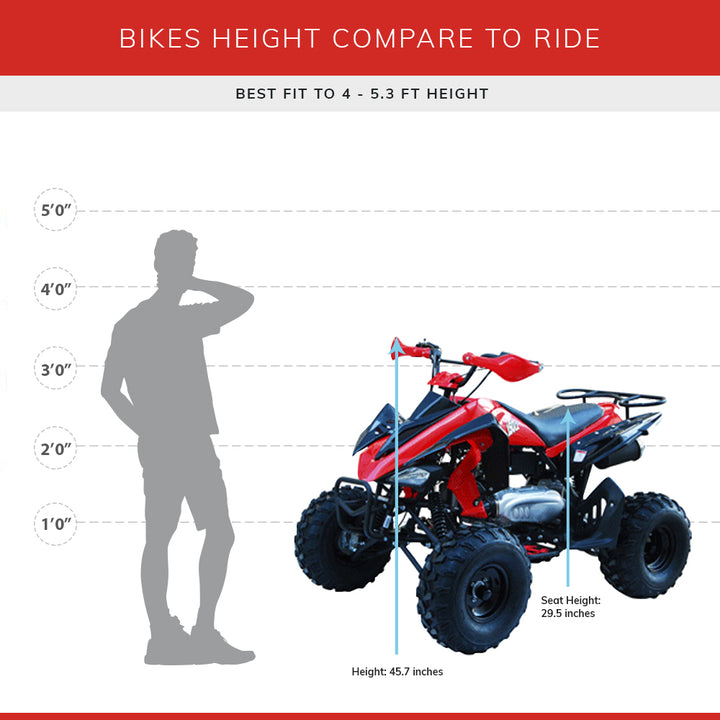

ATV Size Comparison

KIDS

product1
50CC-110CC
ATV 6 inches Rims with
14.5 inches Tires
  • Wheel Base: 31.5 inches
  • Height: 31.5 inches
  • Seat Height: 21.7 inches
  • Recommend Height for: 3 - 4 Ft

KIDS ~ YOUTHS

product2
110CC-125CC
ATV 7 inches Rims with
16 inches Tires
  • Wheel Base: 33.5 to 34.5 inches
  • Height: 36.4 inches
  • Seat Height: 24.4 inches
  • Recommend Height for: 3.5 - 5 Ft

YOUTHS ~ ADULTS

product3
125CC-200CC
ATV 8 inches Rims with
19/18 inches Tires
  • Wheel Base: 36 to 45 inches
  • Height: 37.8 inches
  • Seat Height: 26.8 inches
  • Recommend Height for: 4 - 5.3 Ft

FULL SIZE ADULT

product4
200CC & UP
ATV 10 inches Rims with
23/22 inches Tires
  • Wheel Base: 44 to 47 inches
  • Height: 39.4 inches
  • Seat Height: 33.5 inches
  • Recommend Height for: 4.5 - 6 Ft







Rear Wheel Engine Front-Shock
Headlight Engine Front Shock
Gear-Shifter Front-Drum-Brake Rear-Disc-Brake

Gear Shifter

Front Drum Brake

 Rear Disc Brake
Rear-Shock Taillight
Rear Shock Taillight
