TrailMaster 163cc Kids XRX-R+ Go Kart (Automatic with reverse Clutch, 5.5 HP General Purpose Engine, Electric Start with pull backup system, 12.4 mph top speed)

SKU: TM-MINI-XRX-R-Plus
No reviews
$3,399.95 $1,399.95 SAVE 59%
Availability : In Stock Pre order Out of stock

Order Processing Time: Standard Processing

Standard Processing
Rush Processing

1st Color Choice: Red

Red
Blue

2nd Color Choice: Red

Red
Blue
Add to Wishlist
Description

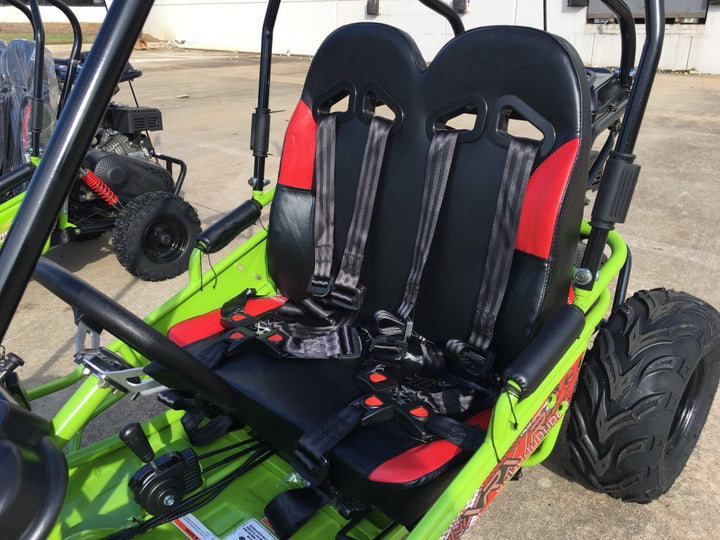

The main differences for the Mini XRX/R+ from the Mini XRX/R is that the Mini XRX/R+ have wider frame, wider seat, extra legroom and best of all: much taller frame and bigger front and rear tires!

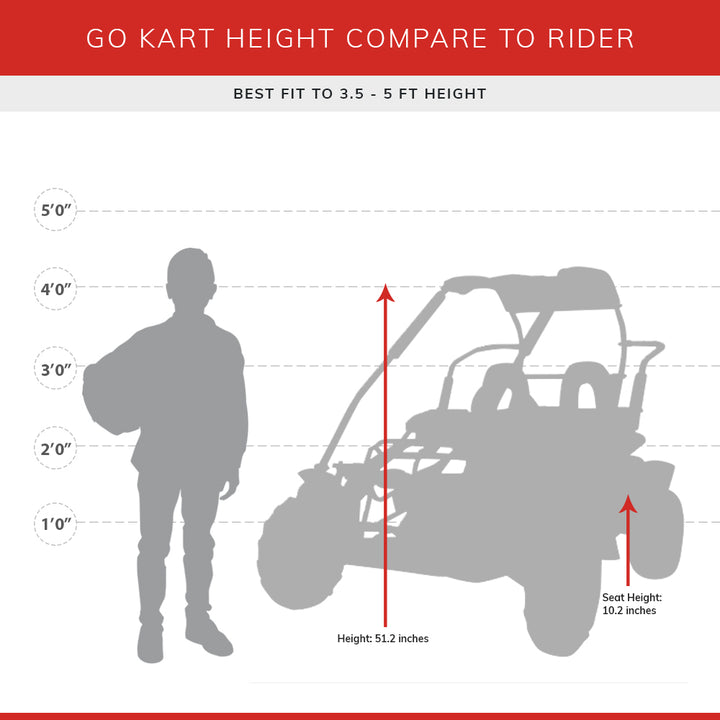

Kart Size Comparison

Kids Go Kart

product1
110cc Go Kart
  • Wheel Base: 52 to 56 inches
  • Horse Power : 6.5+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 23 to 29 inches

Kids & Youth Go Kart

product2
150cc Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 10.0+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 31.5 to 43 inches

Youth & Adult Go Kart

product3
200CC Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 15+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 2 to 4 inches Longer than Regular Type Go kart

Full Size Adult Go Kart

product4
250cc Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 20+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 41 to 48 inches
Specification
Carb ca only

Green Sticker Certification
Chasis suspensions brakes

ClutchAutomatic w/Reverse
Driveline / Driving wheelChain / Dual wheel drive
Suspension, F / RDual A-arm / Double Oil Damped Shock
BrakesDisc

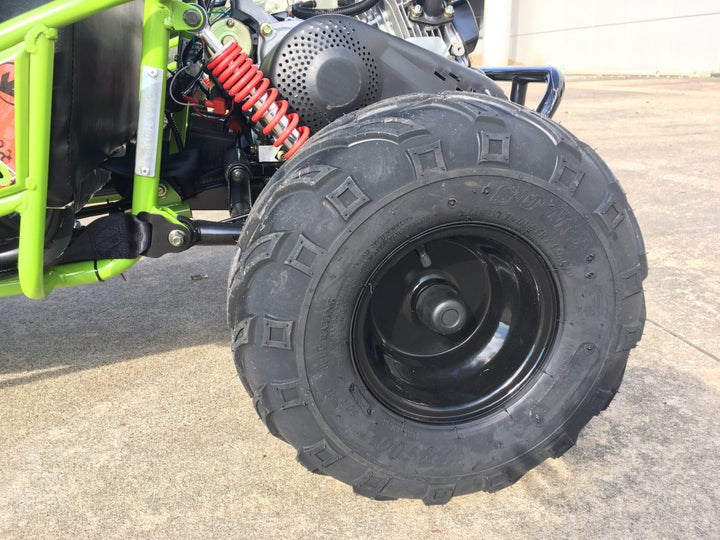

Tires, F / R145X70-6 / 16 X8-7
Dimension

Fuel capacity1.2 gal
Weight, G.W. / N.W.280 / 232 lbs
Max load300 lbs
Wheelbase42.6 inches
OA L x W x H58.7x38.2x48.8 inches
Height to seat13.6 inches
Min ground clearance4.02 inches
Pedal to seat back30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
Enginedrive train

Engine type4-stroke, single cylinder, air cooled
Displacement163cc
Max HP5.5hp/3600rpm
Max torque8 lb ft/3600rpm
Bore x stroke2.6 x 1.8 inches
Max speed12.4mph
Climbing ability12 degrees
IgnitionC.D.I
Starting systemElectric Start with Pull Start Backup
Battery12V 9Ah
Carburetor brandJF (RX)
Engine oilSAE 15W-40
Epa

Yes
