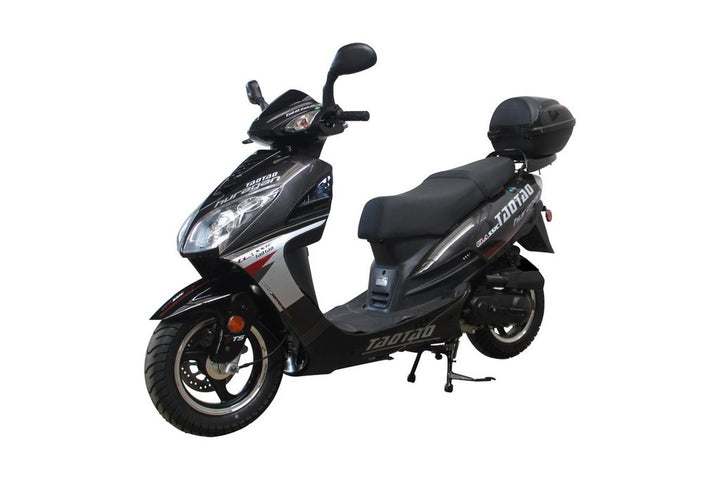

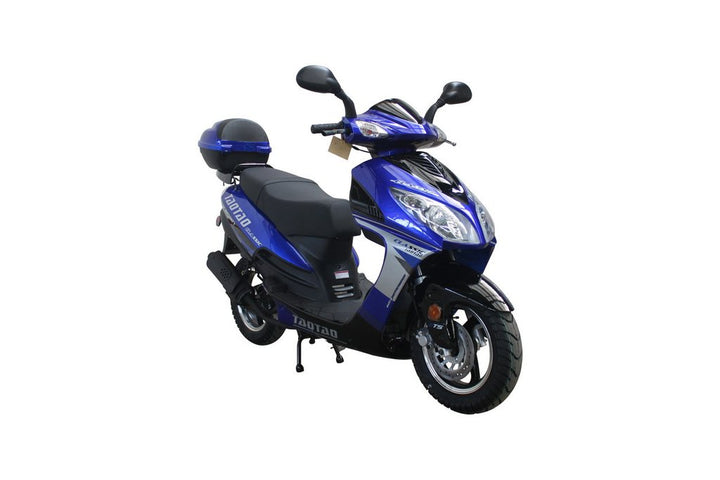

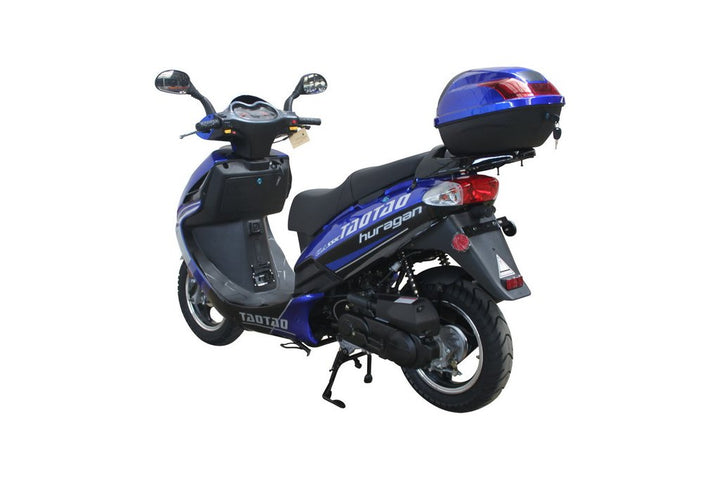

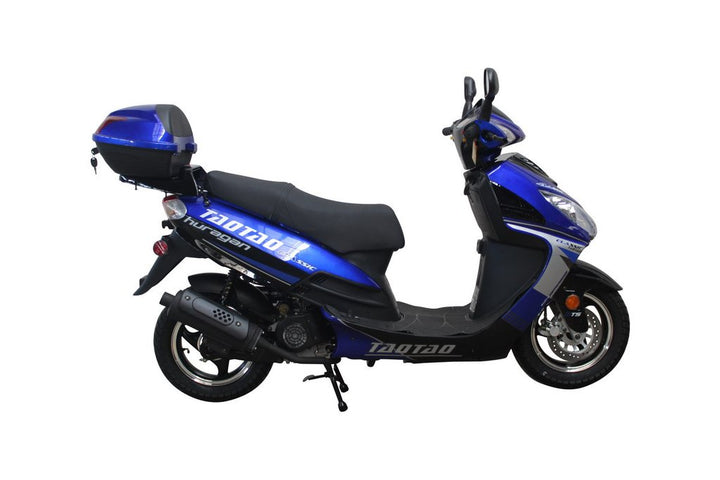

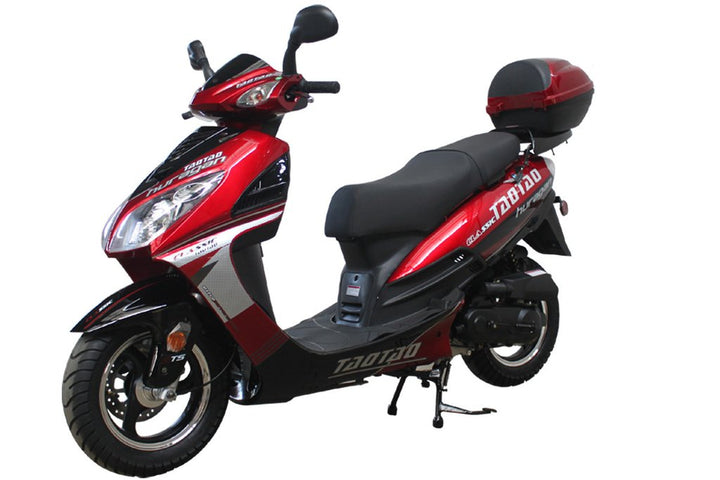

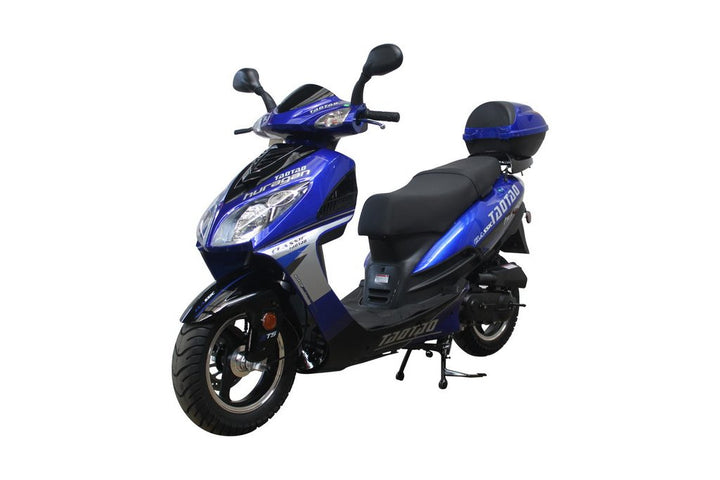

Tao Motor EVO50 (Titan 50) 50cc Scooter
SKU: TTEVO50
Availability :
In Stock
Pre order
Out of stock
Specification
Dimension
Enginedrive train
Other
|
Age recommendation 16+ |
|
Carb approved No |
|
Carb ca only Green Sticker Certification |
|

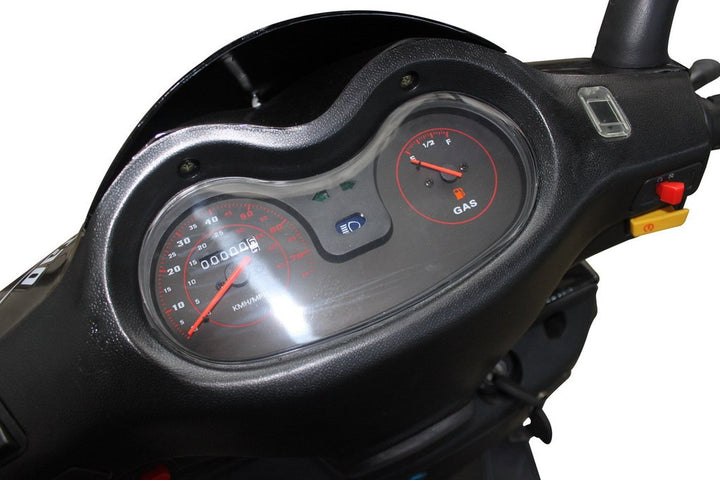

Controls Front & Rear Brake levers, Keyed Ignition, Headlight Switch, Horn, Emergency Shut of Switch, Odometer,Fuel Gauge, Speedometer, Volt Meter, Dimmer Switch |
|
Cooling system Air Cooled |
|
Engine size 50cc |
|
Epa Yes |
|
Epa 2nd Yes |
|
Frame High Strength Steel |
|

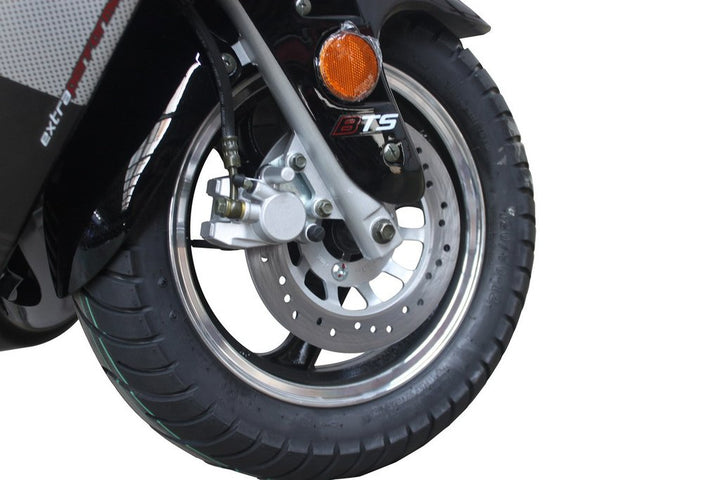

Front brakes Hydraulic Disc |
|
Front suspension Hydraulic |
|
Front tires 120/70-12 |
|
Ignition CDI |
|
Lighting Headlight (High & Low beams), Tail light, Front & Rear turn signals |
|
Rear brakes Drum |
|
Rear tires 120/70-12 |
|
Starter Electric / Kick |
|
Top speed mph depending on rid 25+MPH |
|
Weight 279.9900 |
| Front Brake | Hydraulic Disc |
|---|---|
| Rear Brake | Drum |
| Tire (Front) | Rim | 120/70 -12 | 2.5 x 12 Alloy Rim |
| Tire (Rear) | Rim | 120/70 -12 | 2.5 x 12 Alloy Rim |
Dimension
| L×W×H (Carton) | 73 x 22 x 32 Inches (1865×565×810mm) |
|---|---|
| Wheel Base | 54 Inches (1370mm) |
| Ground Clearance | 4.33 Inches (110mm) |
| Seat Light | 27 Inches (730mm) |
| N.W | 224 LBS (102 Kgs) |
| G.W (Shipping weight) | 268 LBS (122 Kgs) |
| Fuel Tank | 1.3 Gallon (5.0 L) |
| Fuel Consumption | 115 Mpg (2.0 L/100Km) |
Enginedrive train
| Engine Serial | 1P39QMB 4STROKE |
|---|---|
| Displacement (ml) | 49.6 |
| Compress Rate | 10.4:1 |
| Max Torque | 3.0/4000±500 n.m (r/min) |
| Fuel Consumption (g/kW·h) | 400 |
| Start | Electric / Kick |
| Ignition | C.D.I |
| Transmission | V-Belt |
| Max Speed | 25 mph (42 km/h) |
Other
| EPA | YES |
|---|---|
| CARB | YES |
| Battery Type | 12V 7Ah |
| Spark Plug Type / Gap(mm) | A7RTC / 0.6~0.7 |
Description
50cc, 12" Tires Air Cooled Front Hydraulic Disc / Rear Drum Brakes
Tao Motor EVO50 (Titan 50) 50cc Scooter
$1,249.99
