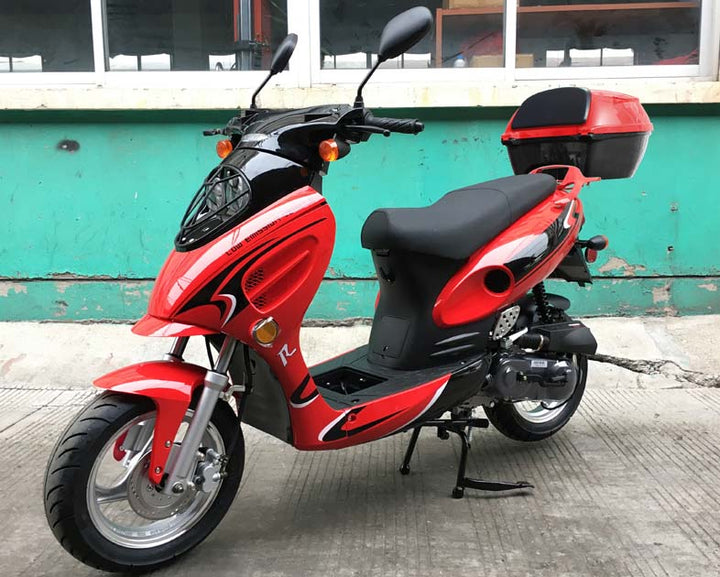

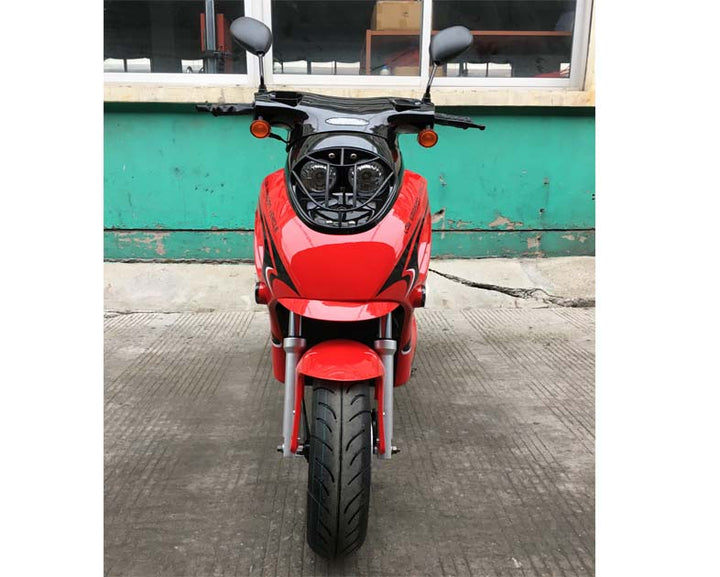

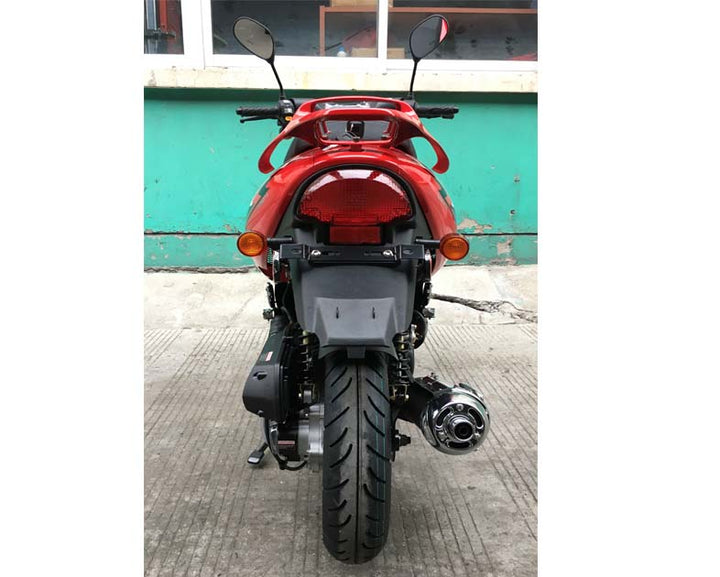

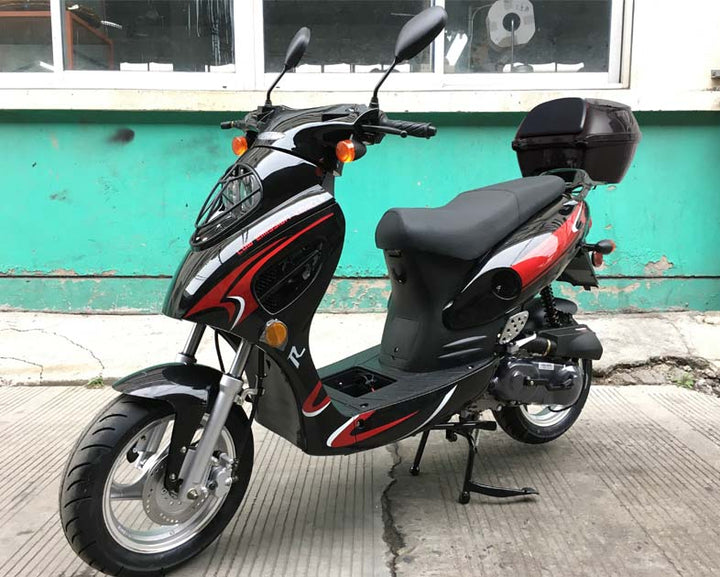

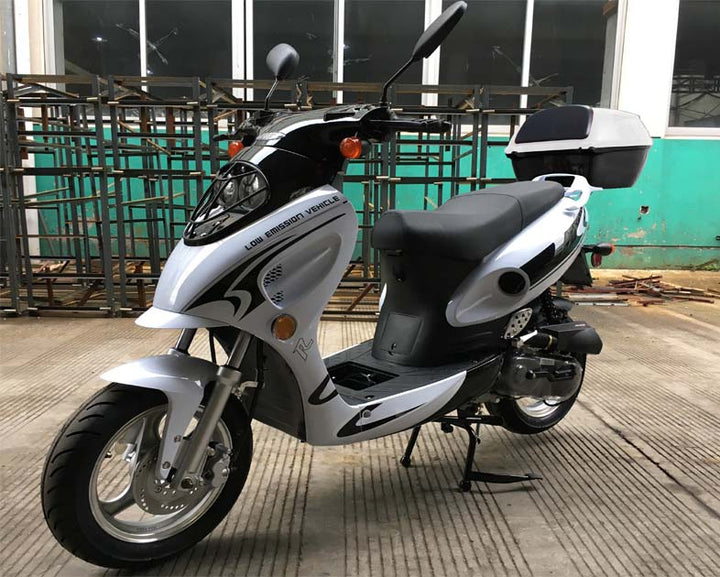

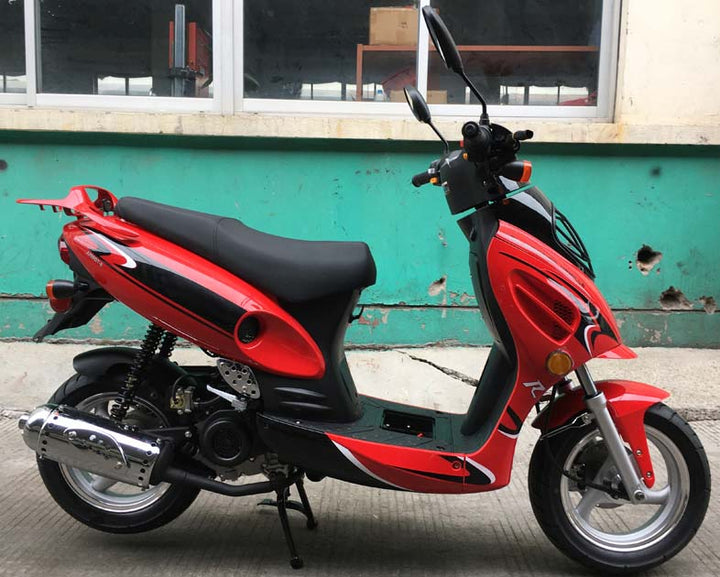

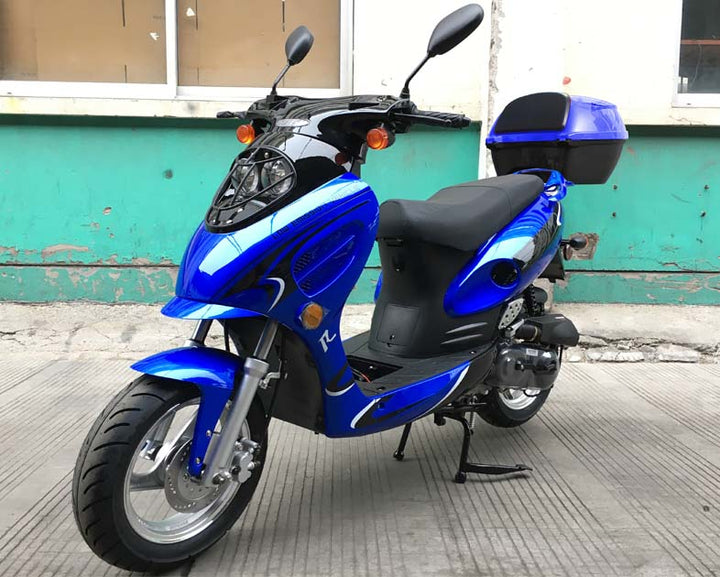

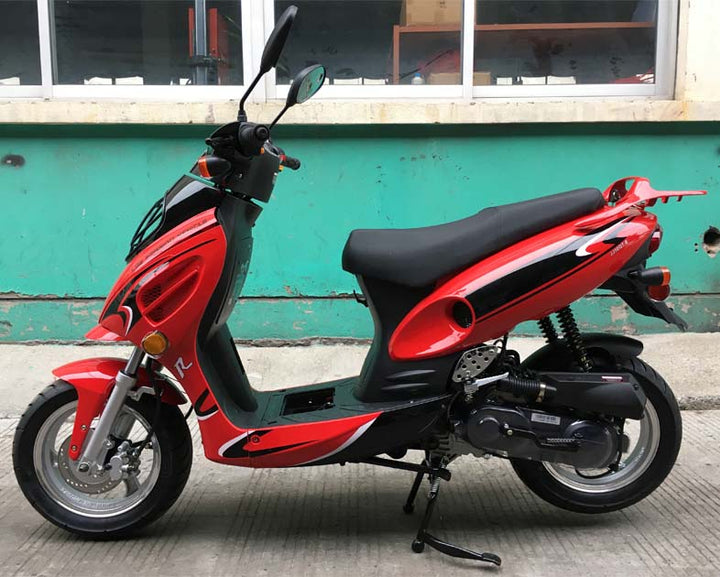

Roketa 50 Scooter Type 07JL
SKU: RK50SC-07JL
Availability :
In Stock
Pre order
Out of stock
Specification
Dimension
Enginedrive train
|
Age recommendation 16+ |
|
Epa Yes |
|
Frame High Strength Steel |
|
Weight 249.0000 |
| Brakes,front/rear | Front disc / rear drum |
|---|---|
| Tires,front/rear | 120/70-12 |
Dimension
| Fuel capacity/type | 5.5 L |
|---|---|
| Weight,G.W./N.W | 120KG/ 100 KG |
| Max load | 330.69 lbs (150 kg) |
| Wheelbase | 1315mm |
| OA L*W*H | 1860*720*1035 MM |
Enginedrive train
IgnitionC.D.I
| Engine type | JJ1P39QMB-50CC，4-stroke,1-cylinder,CVT |
|---|---|
| Displacement | 50 cc |
| Cooling | Forced air-cooled |
| Max speed | (km/h):55 |
| Starting system | Electric starter / kick starter |
| Battery | 12V6AH |
| Driveline | Belt |
Description
| ENGINE INFO | |
| Engine Type | JJ1P39QMB-50CC?4-stroke, 1-cylinder, CVT |
| Engine Brand | JIAJUE |
| Displacement | 50CC (49.6ML) |
| Cooling | Air-Cooled |
| Max Horsepower | 2.5kw/7500min |
| Max Torque | 3.0N.m/6000min |
| Bore Stroke | 39*41.5 MM; |
| Max Speed | 55 |
| Climbing Ability | 30 |
| Ignition | C.D.I |
| Starting System | Kick/Electric |
| Battery | 12V6AH |
| Carburetor Brand | DASHUN |
| Engine Oil | SF 15W/40 |
| Gear Oil | GL-4 85W/90 |
| CHASSIS ETC. | |
| Clutch | CVT |
| Transmission | Automatic |
| Drive Line | Belt |
| ? | |
| Suspension (Front/Rear) | Double Absorbed |
| Brakes (Front/Rear) | Front Disk, Rear Drum Brake |
| Brake Operation | Hand Brake |
| Tires (Front/Rear) | 120/70-12 |
| Fuel Capacity/Type | * |
| Weight, G.W./N.W. | 120KG/ 100 KG |
| Max Load | 150 KG |
| DIMENSIONS | |
| Wheelbase | 1315 MM |
| OA L*W*H | 1860*720*1035 MM |
| Height To Seat | 850 MM |
| Min Ground Clearance | 130 MM |
| Carton Size | 1780*580*870 MM |
