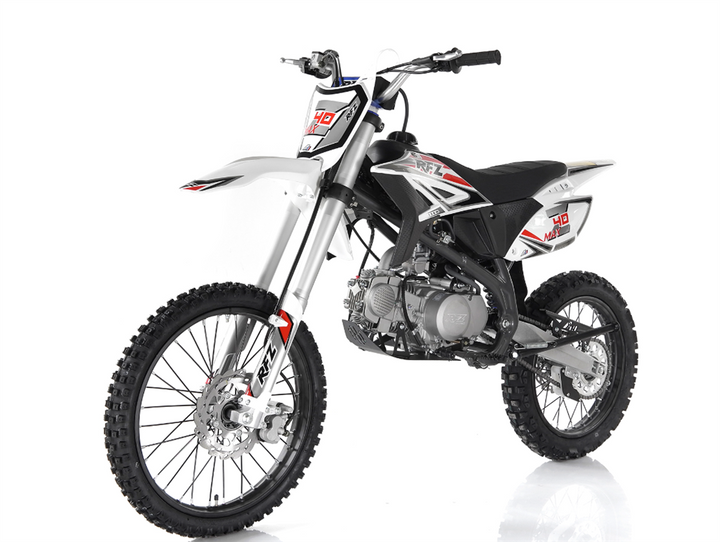

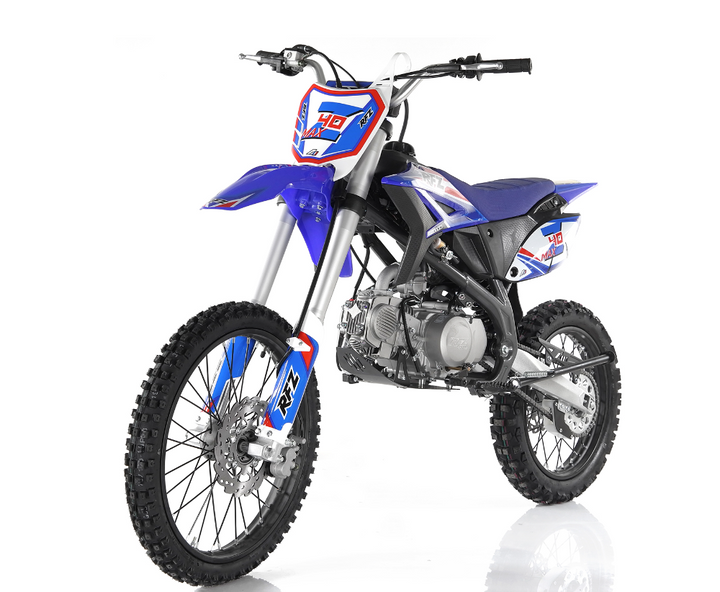

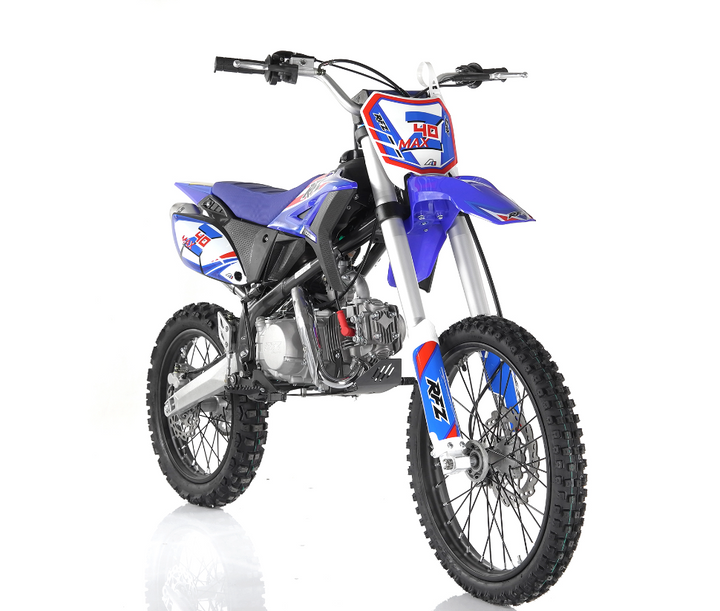

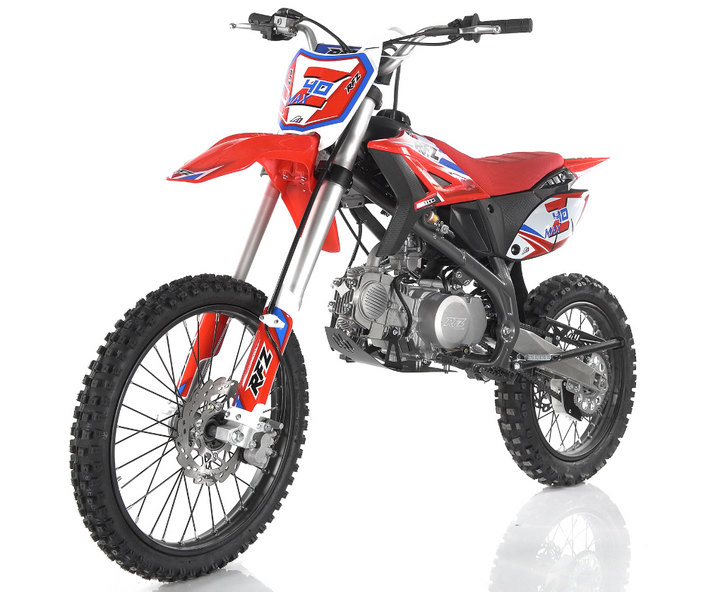

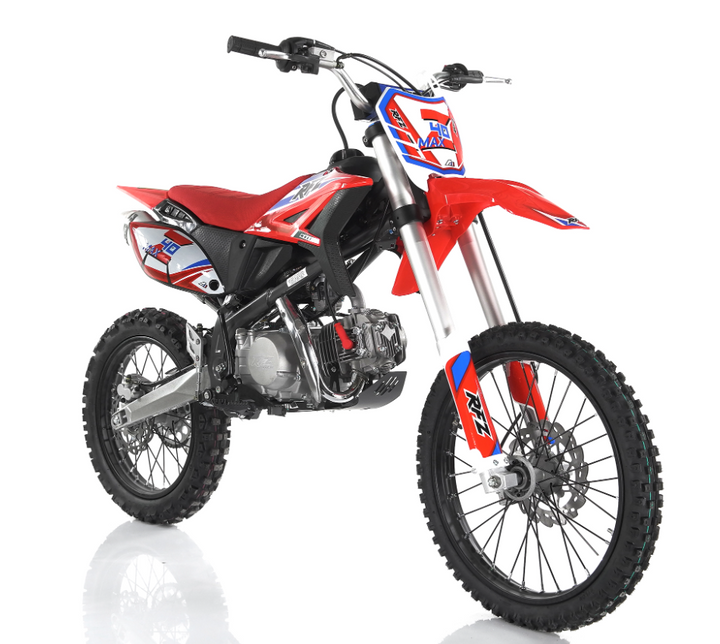

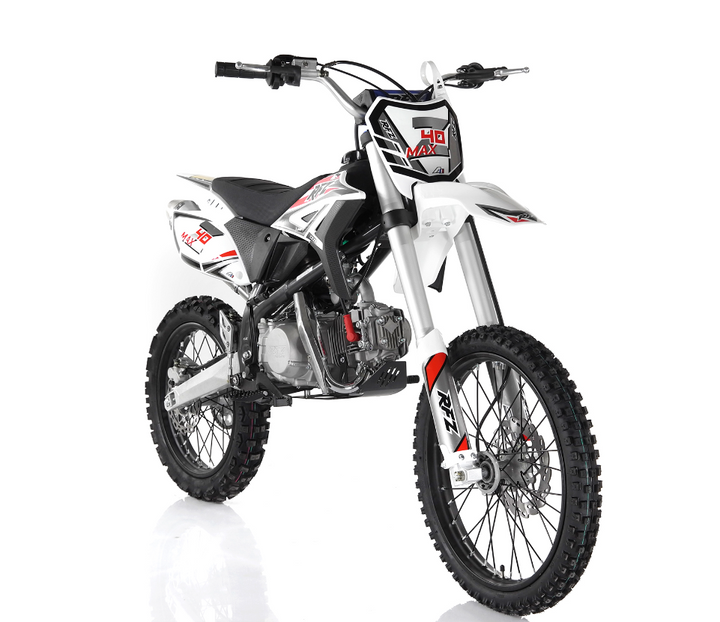

Apollo 140 Z40 MAX Dirt Bike

SKU: AP140DB-Z40MAX
No reviews
$1,299.95
Availability : In Stock Pre order Out of stock
Add to Wishlist
Ask a Question
Categories: 125cc Dirt Bikes, Dirt Bikes, Kids Dirt Bike, Products, Sale
Tags: 125cc Dirt Bikes, Dirt Bikes, Kids Dirt Bike, Sale

Specification
Epa

Yes
Hot item

Hot Item
Manufacture

Apollo
Starting system

Kick Start
Transmission

4 Speed Transmission;Manual
Weight

145.0000

Front wheel 70/100-19
Rear wheel 90/100-16
Drive train Chain drive
Front and rear absorber brand SYD
Front absorber 30.3 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame

Dimension

N.W: 168 LBS
G.W 196 LBS
Products size(L*W*H)  74*30.7*48 inches
seat high  34.5 inches
wheel base 49.2 inches
Ground Clearance 14.5 inches

Info


carburetor PZ26
engine Brand YX
engine  140cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 54×54mm
compression ratio   8.8：1
max power  7.8HP/7500r/min
Max torque 8.6N.m/5000r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.03 Gallon
Start way Kick Start
Description

Product Details Overview

Pit Bike Semi Automatic

Manual Standard Transmission ((Shift Pattern, Four Up)
Standard Manual 4 speed transmission with 4 Up Shift Pattern, Maximize your fun in your race now



Pit Bike Hydraulic Fork

Pit Bike w/ Hydraulic Front Forks
Conventional Hydraulic Forks give you more travel and better balance for your ride. Maximize your riding skill on the rock and dirt.



Pit Bike 19mm Keihin Carburetor

22mm High Performance Carburetor
High Performance carburetor. It is designed with Japanese Technologies improves top performance on your bike.



Pit Bike 255mm Rear Shock

275mm Coilover Rear Shock
275mm Coilover Shock with Adjustable with compression damping and coil spring preload, High-speed compression and rebound reaction are available. Nitrogen charged.



Pit Bike Mild Steel Swing arm

Black Mild Steel Strong Swing Arm
It will get more rear wheel travel and ride height for your new mini. This Swingarm is a replica of the Super Pro Swingarm that moves the shock to the vertical position.



Pit Bike Hydraulic Brake System

Pit Bike Hydraulic Brake System
8-Inch Vented Wave Rotor and Single-Piston Caliper, 7.5-Inch Vented Rotor and Single-Piston Caliper, Hydraulic Actuation, Hydraulic Actuation provide the best handling on the brake ensure the max power of your braking system.



Pit Bike Upgraded Muffler

Performance Exhaust System
Performance Exhaust makes your mini have that deep throaty sound like the big CRF's and gives your mini better throttle response and more power.



Pit Bike Aluminum-Rim

Pit Bike Aluminum-Rim with "Semi-Pro" Hub
2.75-17 Front Tire on Anodized, Aluminum-Rim with "Semi-Pro" Hub; 3.0-14 Rear Tire on Black Anodized, Aluminum-Rim with "Semi-Pro" Hub, Light weight material with strong support for running.

Dirt Size Comparison

Kids Dirt Bike

></div> <div class=49cc - 110cc
  • 53 x 25 x 34 Inches
  • 10inch Front & Rear Wheel
  • Seat Height: 26inch
  • Best Fit 3-4.5 Ft

Kids - Youth Dirt Bike

></div> <div class=110cc - 125cc
  • 63 x 30 x 43 Inches
  • 14inch Front & 12inch Rear Wheel
  • Seat Height: 27.5inch
  • Best Fit 3.5-5 Ft

Youth - Adult Dirt Bike

></div> <div class=125cc and UP
  • 70 x 30 x 43 Inches
  • 17inch Front & 14inch Rear Wheel
  • Seat Height: 34 inch
  • Best Fit 4.2-6 Ft
